Ref.: 794407 10

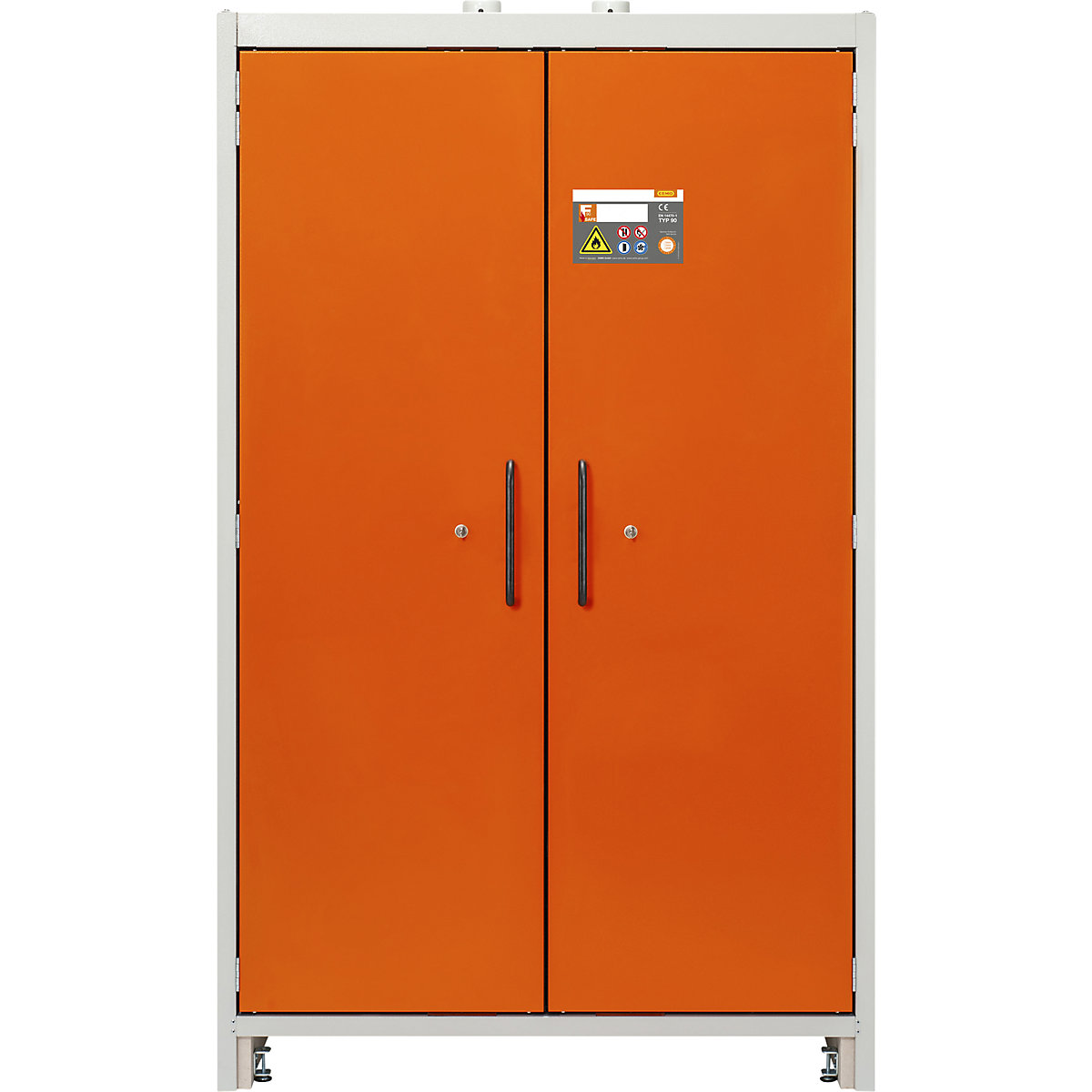

Fire resistant hazardous goods storage cupboard type 90 PROline – CEMO base sump 66 l

Fire resistant hazardous goods storage cupboard type 90 PROline – CEMO

HxWxD 1950 x 1200 x 600 mm

New
on request
Price / item (Ex. VAT)
Availability: 7-10 Working days
Product description
  • For regulation compliant storage of flammable media in accordance with EN 14470-1 and TRGS 510 (appendix 1)
  • Type tested protection against fire for 90 minutes

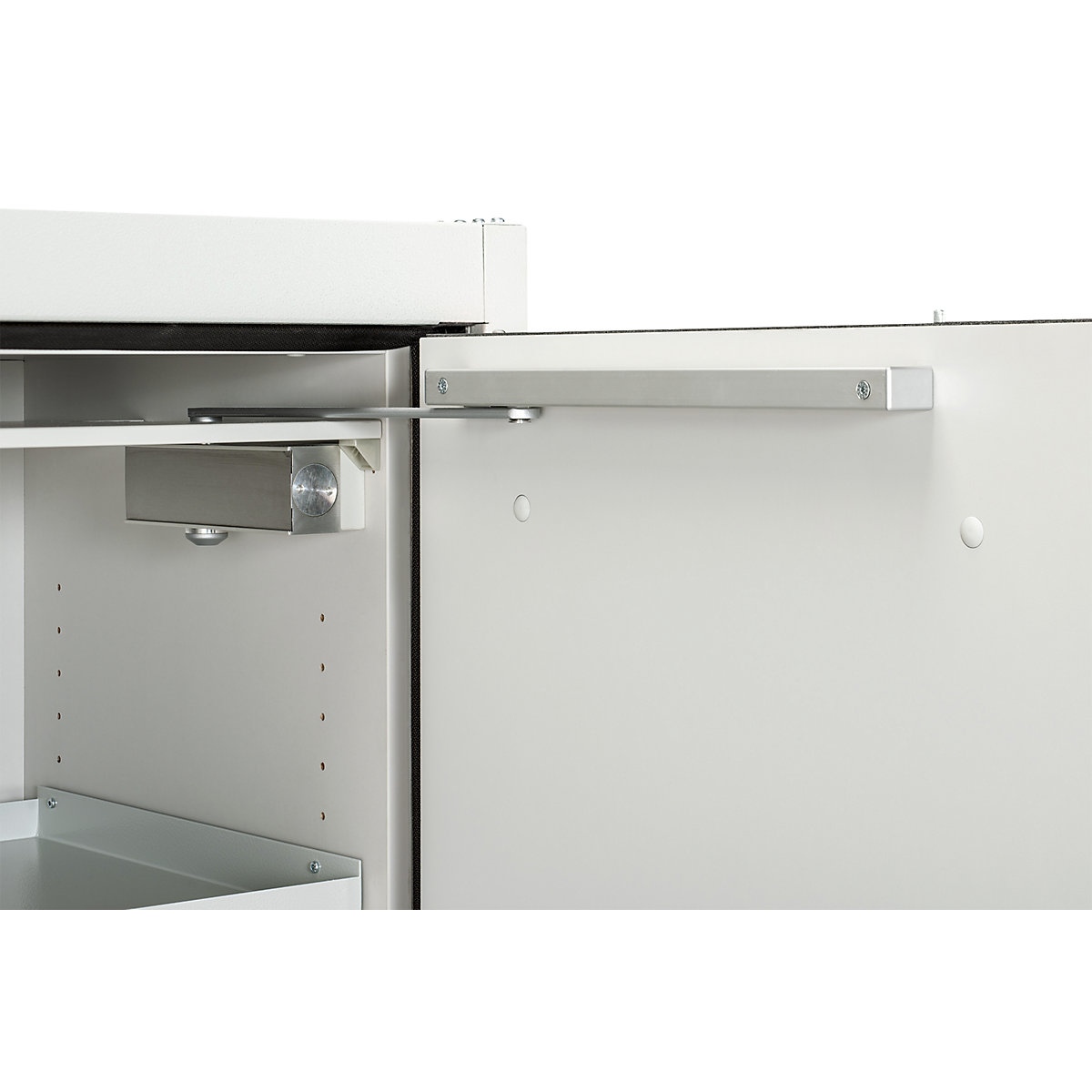

  • Doors lock in any position – open doors close automatically in case of fire

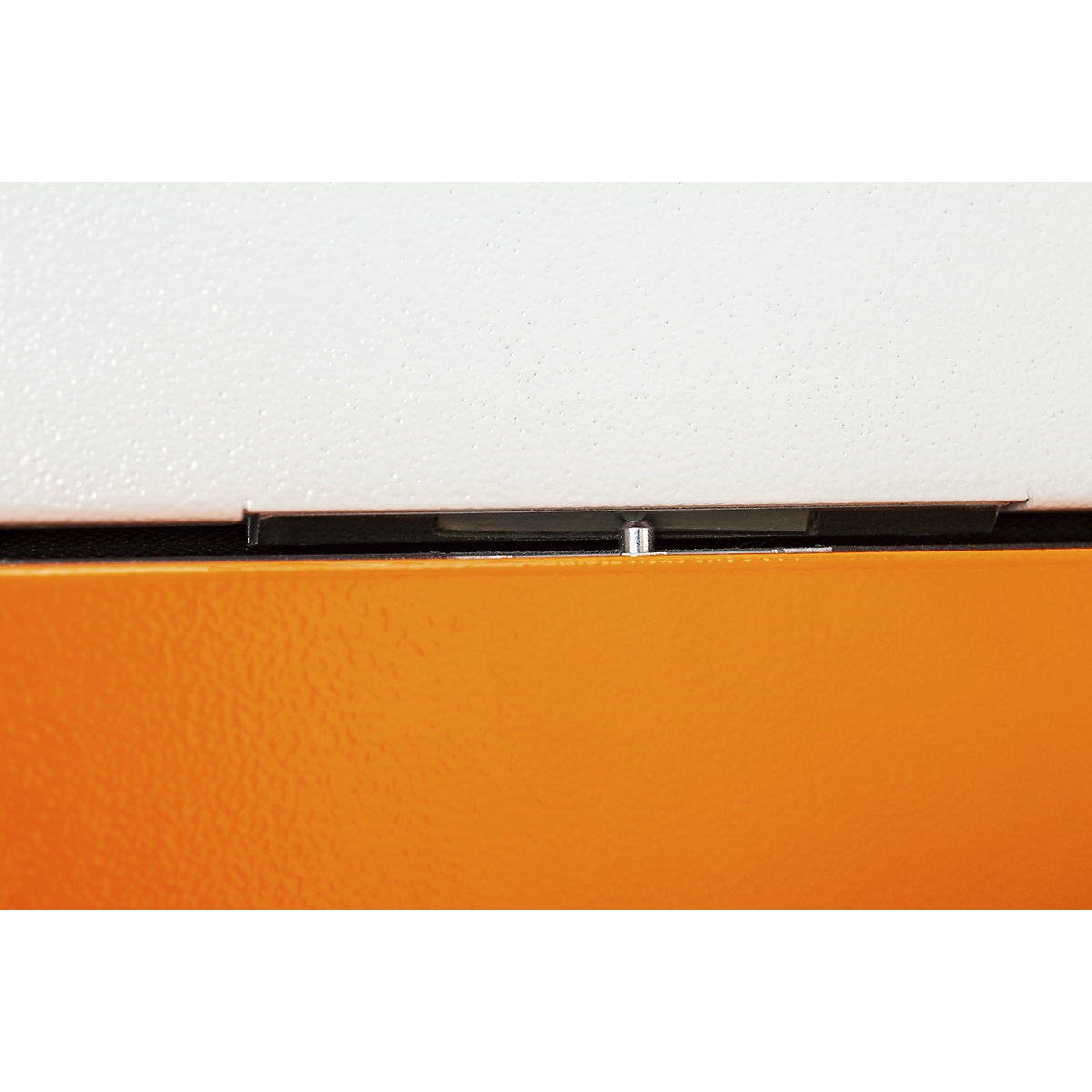

  • The doors lock automatically when the doors are closed
  • Fire insulation and high quality door seals
  • Permanently integrated, forklift accessible plinth – for easy transport of the cupboard
  • Includes a plinth cover plate to cover the forklift accessible plinth
  • Height adjustment screws for levelling on uneven surfaces

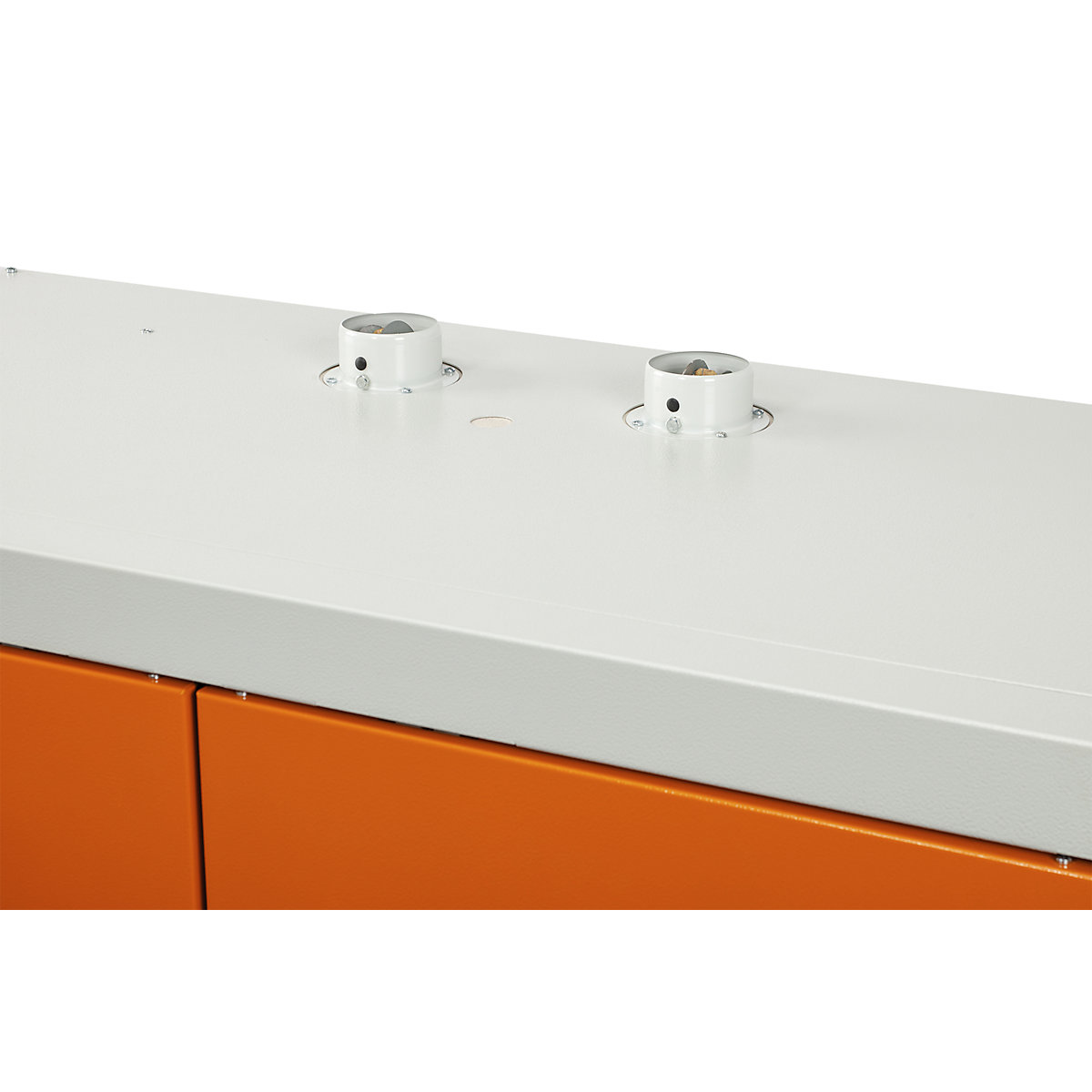

  • Ventilation connection (DN 75) in the roof. Labelling in accordance with EN 14470-1 (2023 edition)
  • Load verification for the weight of the fan on the top of the cupboard
Extremely robust, durable construction made of sheet steel with hardwearing textured powder coating and maximum torsional rigidity. Earth connection on the outside of the cupboard to prevent ignition hazards due to electrostatic charging.

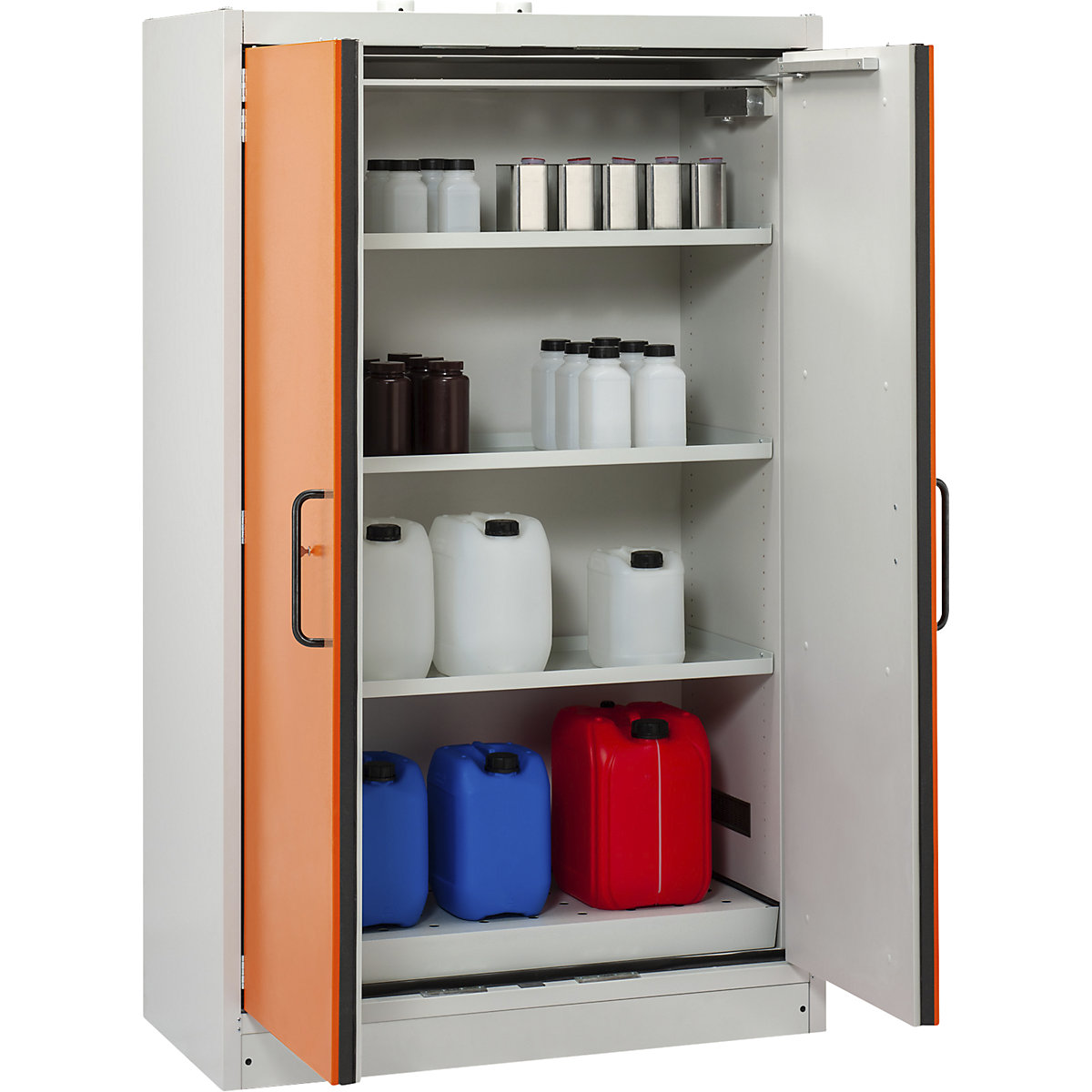

Interior fittings:

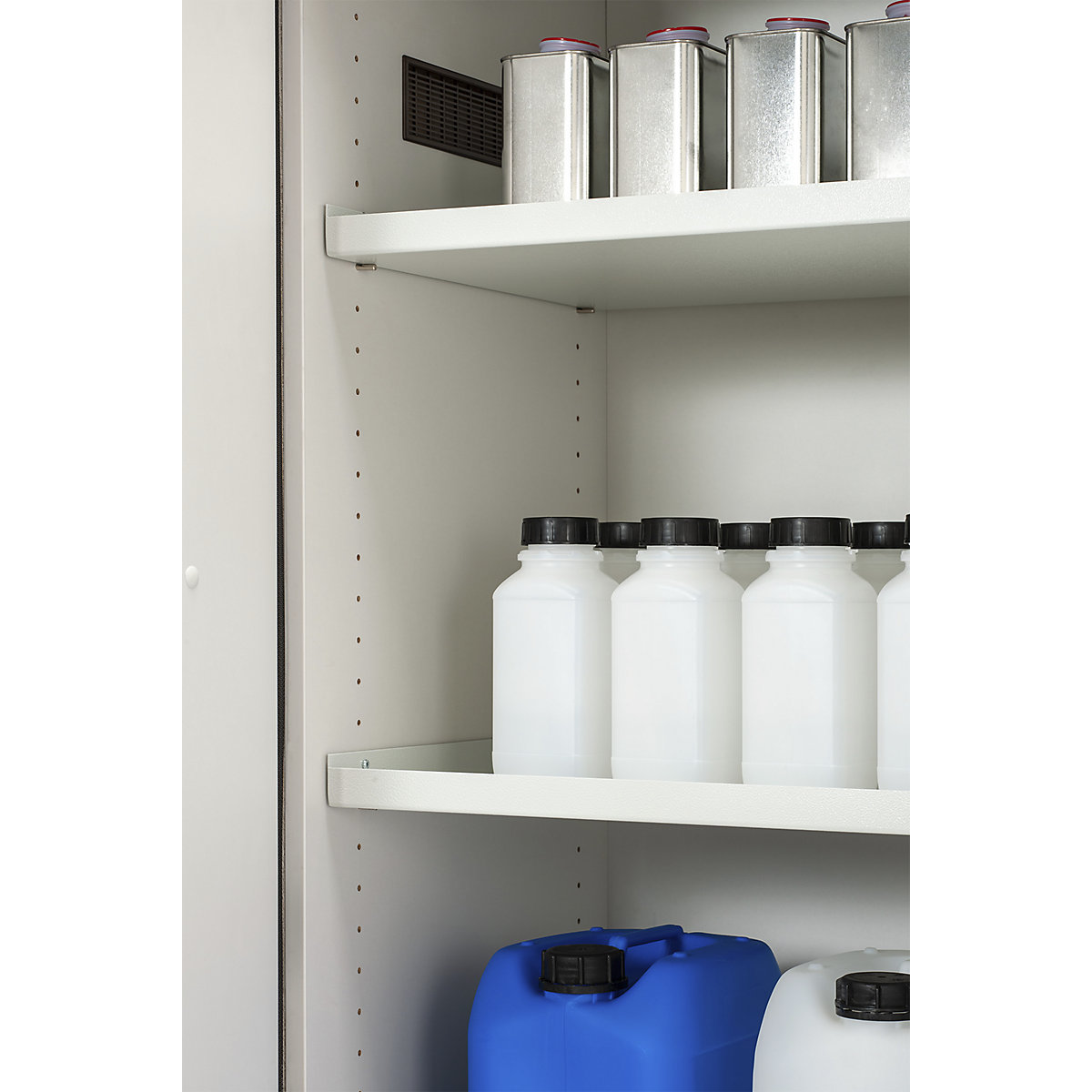

– 3 tray shelves made of sheet steel, powder coated, each with a max. load of 75 kg (with evenly distributed load), adjustable in increments of 32 mm

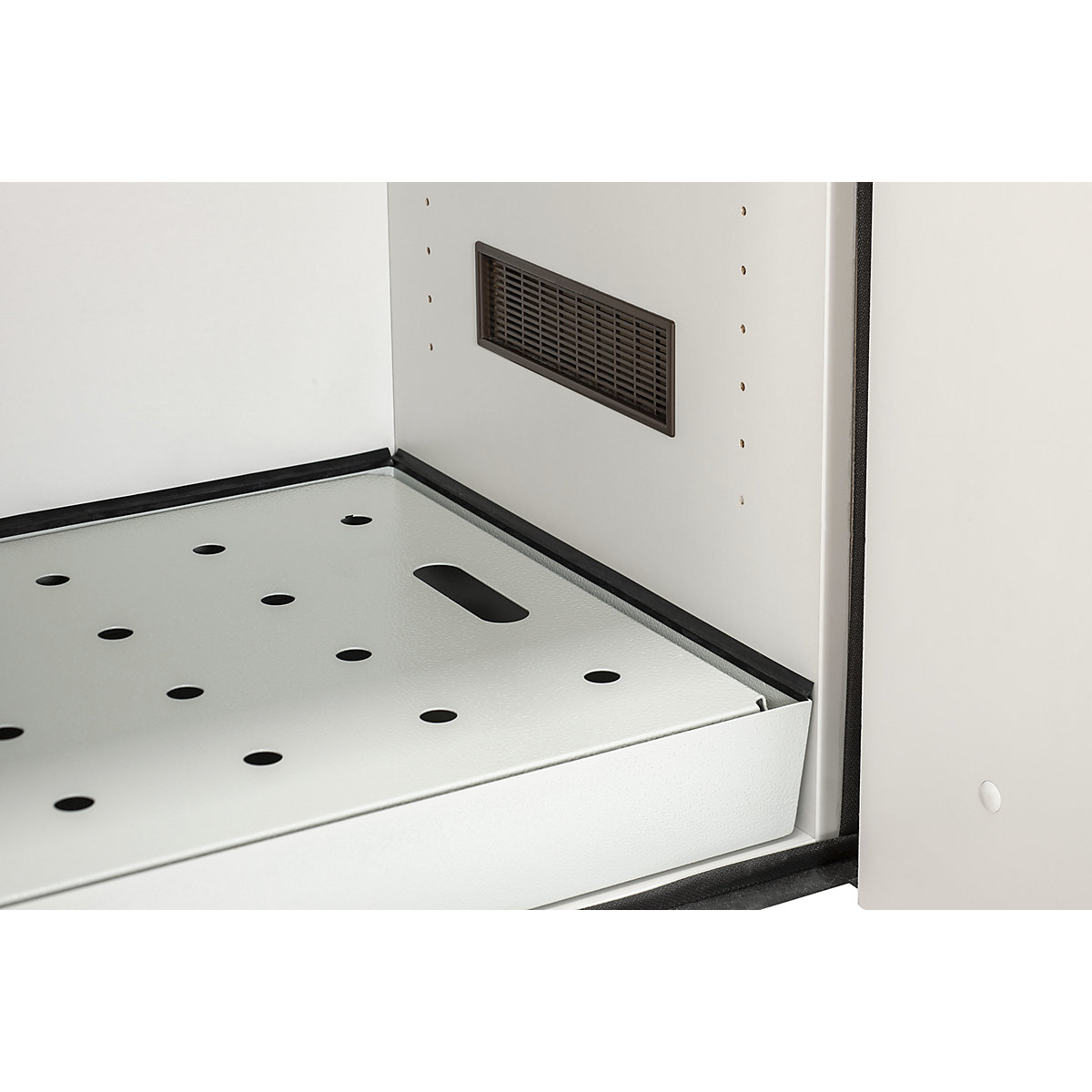

– 1 powder coated sheet steel base sump tray, capacity 66 litres, including perforated plate insert, tested in accordance with StawaR / ÜHP

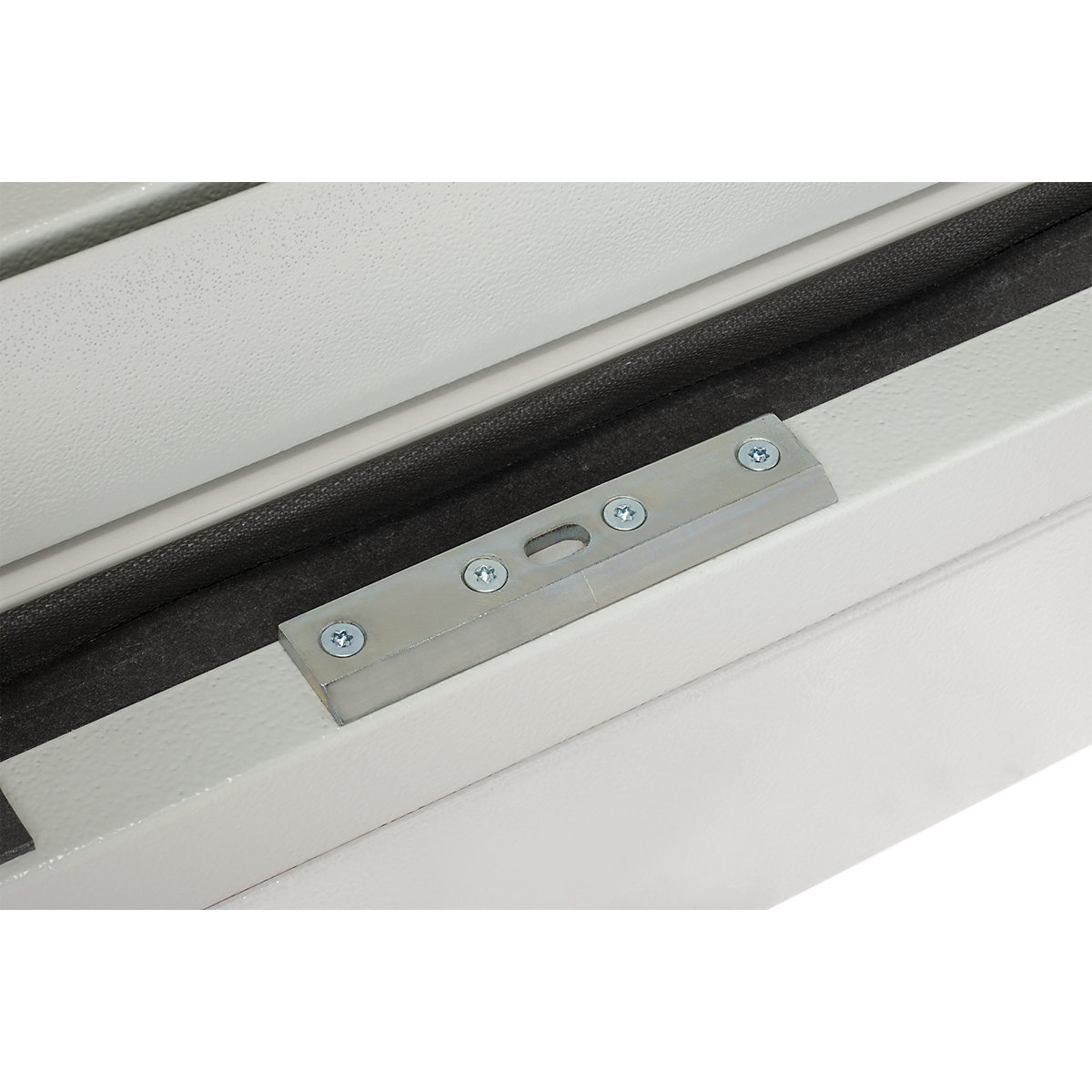

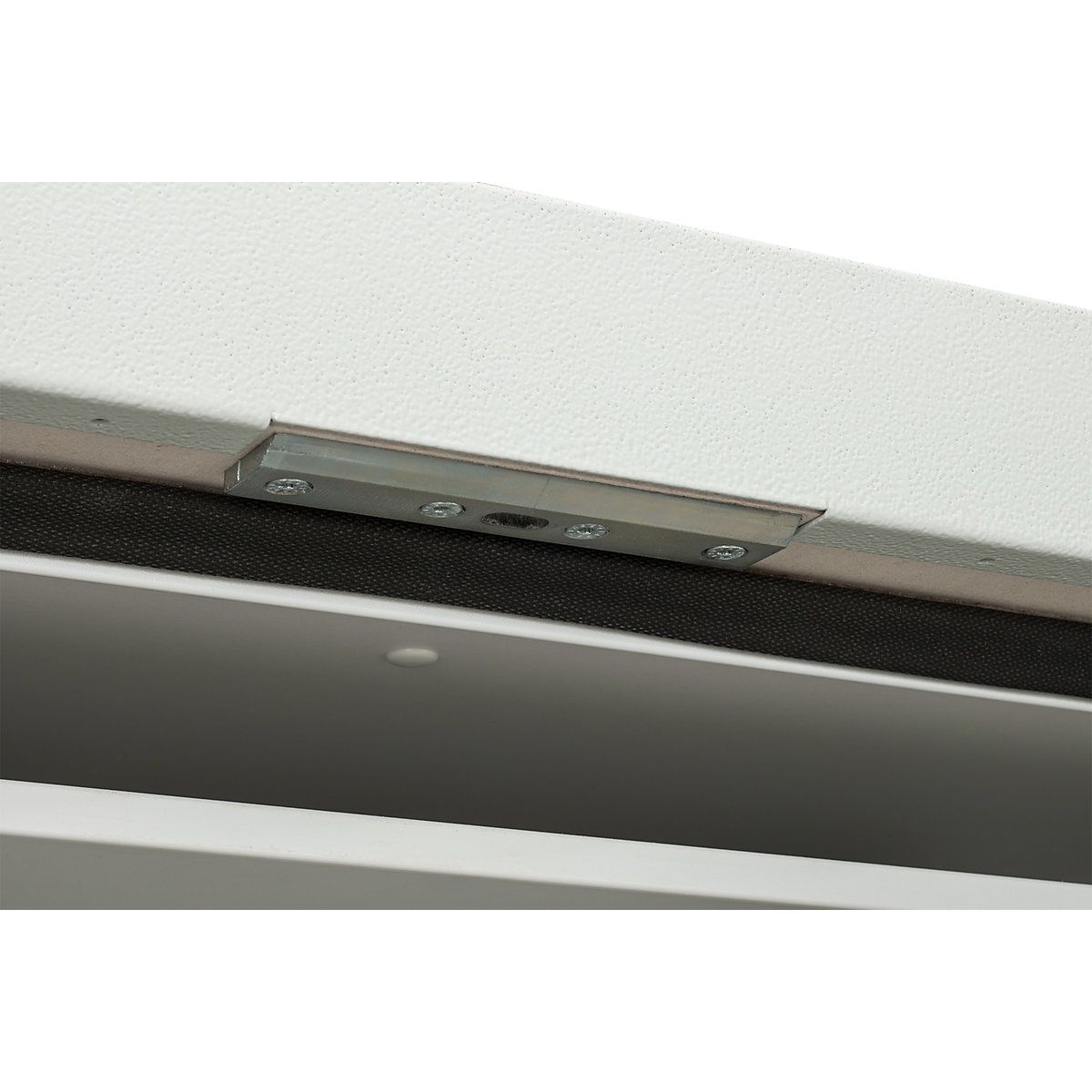

– Secure 2-point lock for optimum access protection

Optional accessories: additional tray shelves, exhaust air fan, recirculation fan, cable duct for installation of measurement technology or fire alarm system (see Accessories).
Type 90 hazardous goods storage cupboards for the storage of flammable liquids. Proven protection against fire for 90 minutes, fire chamber tested and certified. Complies with EN 144701-1.
Type 90 hazardous goods storage cupboards for the storage of flammable liquids. Proven protection against fire for 90 minutes, fire chamber tested and certified. Complies with EN 144701-1.
For water hazardous liquids
For water hazardous liquids
For flammable liquids
For flammable liquids
For toxic liquids
For toxic liquids
Technical data
Fire resistance90 minutes
Height1950 mm
Width1200 mm
Depth600 mm
Internal width1050 mm
Internal height1660 mm
Internal depth490 mm
Materialspecial fire resistant boards  sheet steel, powder coated
Hazard classfor flammable media in work rooms in accordance with DIN EN 14470-1 and TRGS 510 (appendix 3)
Ventilationventilation connection (NW 75)
Body colourlight grey RAL 7035
Door colourbright red orange RAL 2008
Door typehinged door
Door version2 doors
Lock typecylinder lock with 2-point lock
Number of doors2 pcs.
Shelf materialsheet steel, powder coated
Max. shelf load75 kg
Shelf height adjustment increments32 mm
Number of base sumps1 pcs.
Base sump tray capacity66 l
Number of storage levels4 pcs.
Number of tray shelves3 pcs.
Product typehazardous goods storage cupboards, fire resistant
Suppliedpre-assembled, final assembly by customer
Weight450 kg
