Ref.: 826204 10

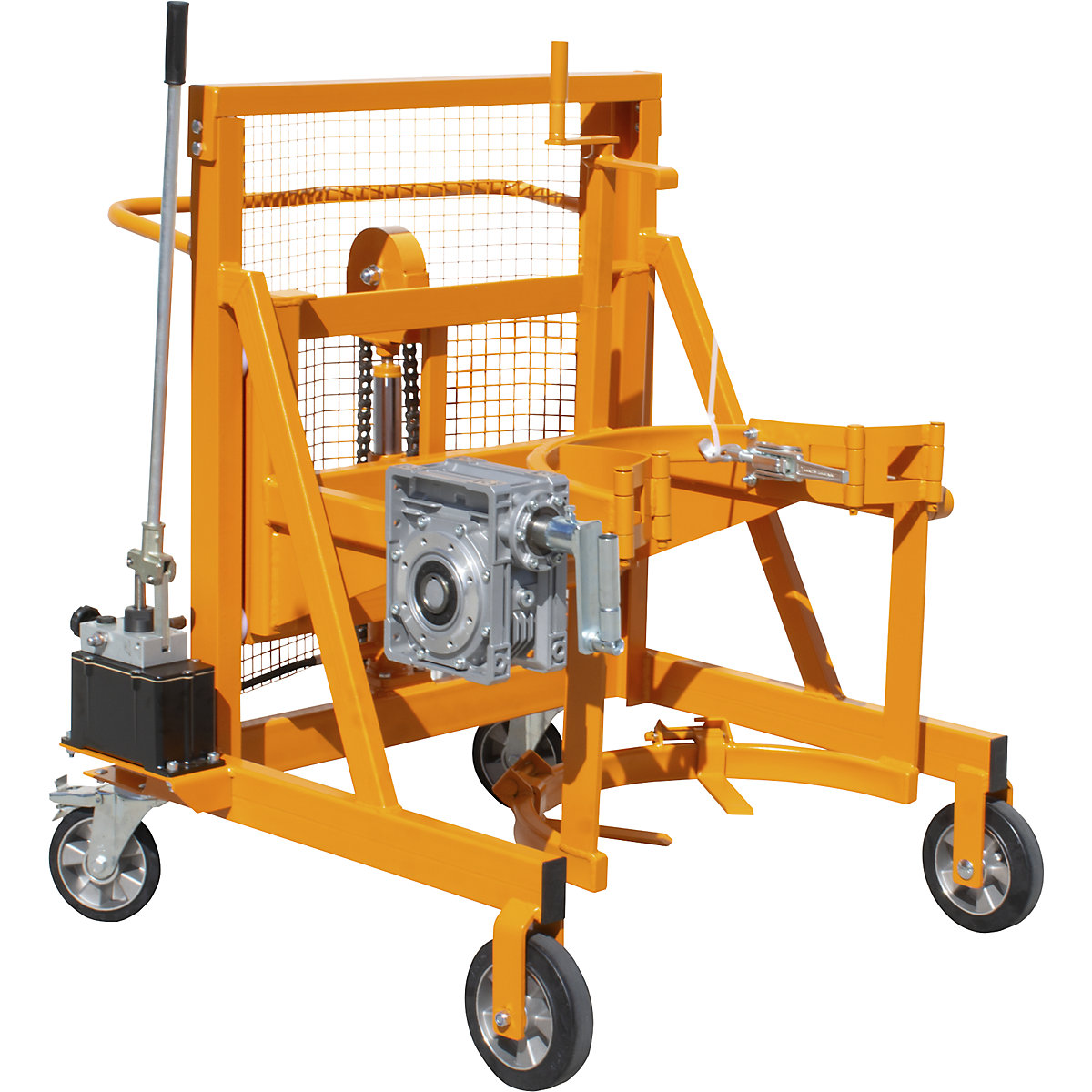

Liftomat L/M drum lifting and tilting unit – eurokraft pro lifting height 450 mm

Liftomat L/M drum lifting and tilting unit – eurokraft pro

max. load 350 kg, zinc plated

New
on request
Price / item (Ex. VAT)
Availability: Over 4 weeks
Product description
  • Drums lifted by a hydraulic hand pump, 18 mm per stroke
  • Safe drum holder due to clamp lock at the front and threaded bracket on top
  • Drums tilted by using a hand crank on a self-locking screw gear
  • Metered and precise drum emptying
  • Mobile use due to castor set
Hydraulic drum lifter for the metered emptying of steel bung drums, steel lidded drums, rolling hoop drums, plastic L-ring drums, plastic double L-ring drums and plastic lidded drums with a capacity of 110 to 220 l.

Draining height 600 mm.
Technical data
Max. load350 kg
Lifting height450 mm
For drum capacities110 – 220 litres
Slope270°
Wheel fittings2 swivel castors with wheel stop, 2 fixed castors
Wheel typesolid rubber
Height1230 mm
Length1390 mm
Width1120 mm
Modelmobile
Swivel castor diameter175 mm
Fork roller diameter200 mm
Product typedrum grips
Suppliedassembled
Colourzinc plated
Finishhot dip galvanised
Weight168 kg
