Crane scales – KERN high resolution

Crane scales – KERN
Crane scales – KERN, high resolution, weighing range up to 12000 kg, read-out accuracy 1000 / 2000 / 5000 g-0
Crane scales – KERN (Product illustration 2)-1
Crane scales – KERN (Product illustration 3)-2
Crane scales – KERN (Product illustration 4)-3

weighing range up to 12000 kg, read-out accuracy 1000 / 2000 / 5000 g

New
on request
Price / item (Ex. VAT)
Availability: 7-10 Working days
Product description
  • Robust, high resolution crane scales up to 12 tonnes
  • Tested by TÜV in accordance with EN 13155 and EN 61010-1
  • Sturdy construction, suitable for continuous use in industrial environments
  • High mobility due to rechargeable battery operation and compact, lightweight design

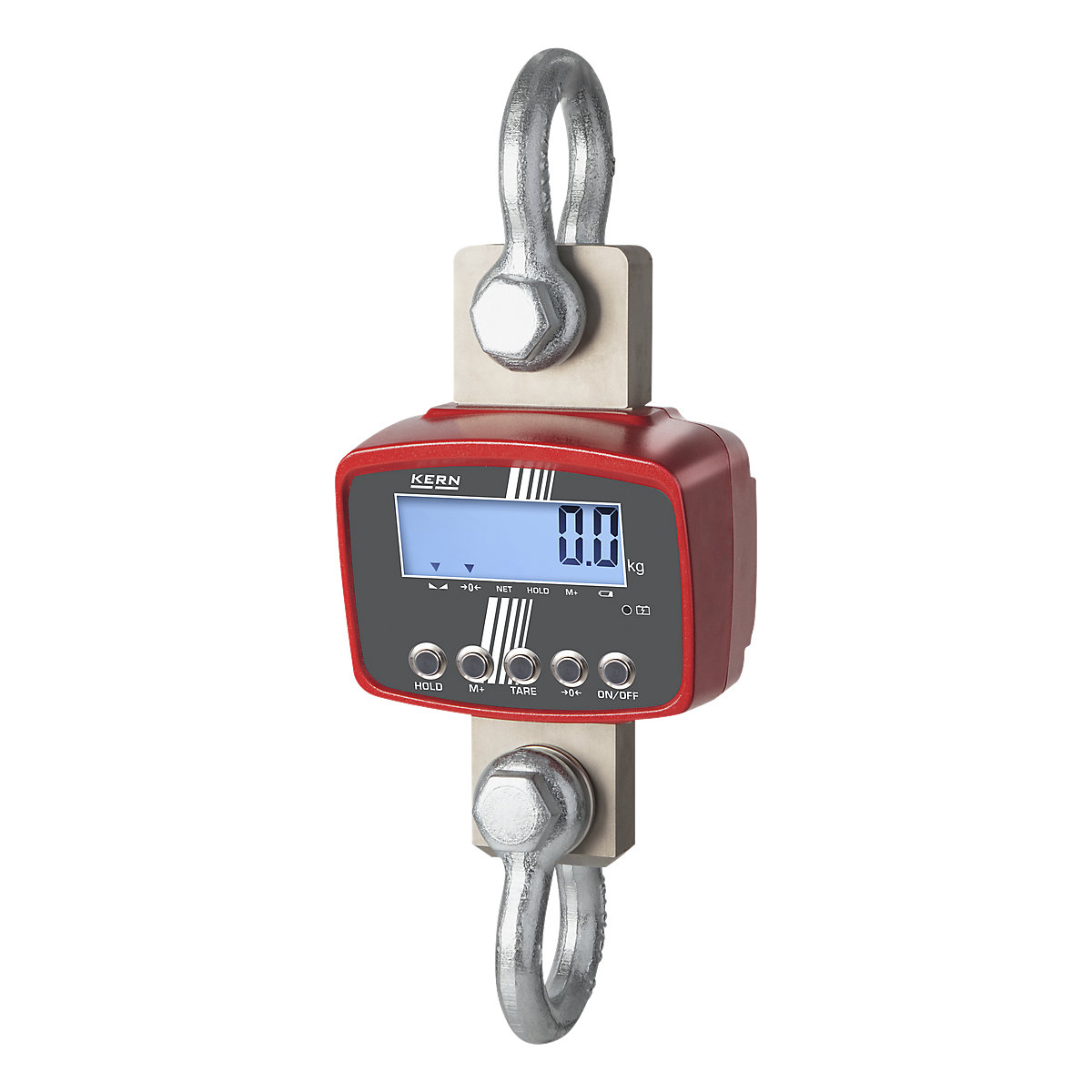

  • Backlit display with large digits, hold and tare function
  • Radio remote control with a range of up to 20 m
The crane scale with a high resolution display is a versatile solution for applications involving weighing processes in a range of areas of use, such as recycling, metal processing, mechanical engineering, transport and logistics. The stable construction and robust design make them particularly suitable for continuous use in industrial environments.

Multi-range display

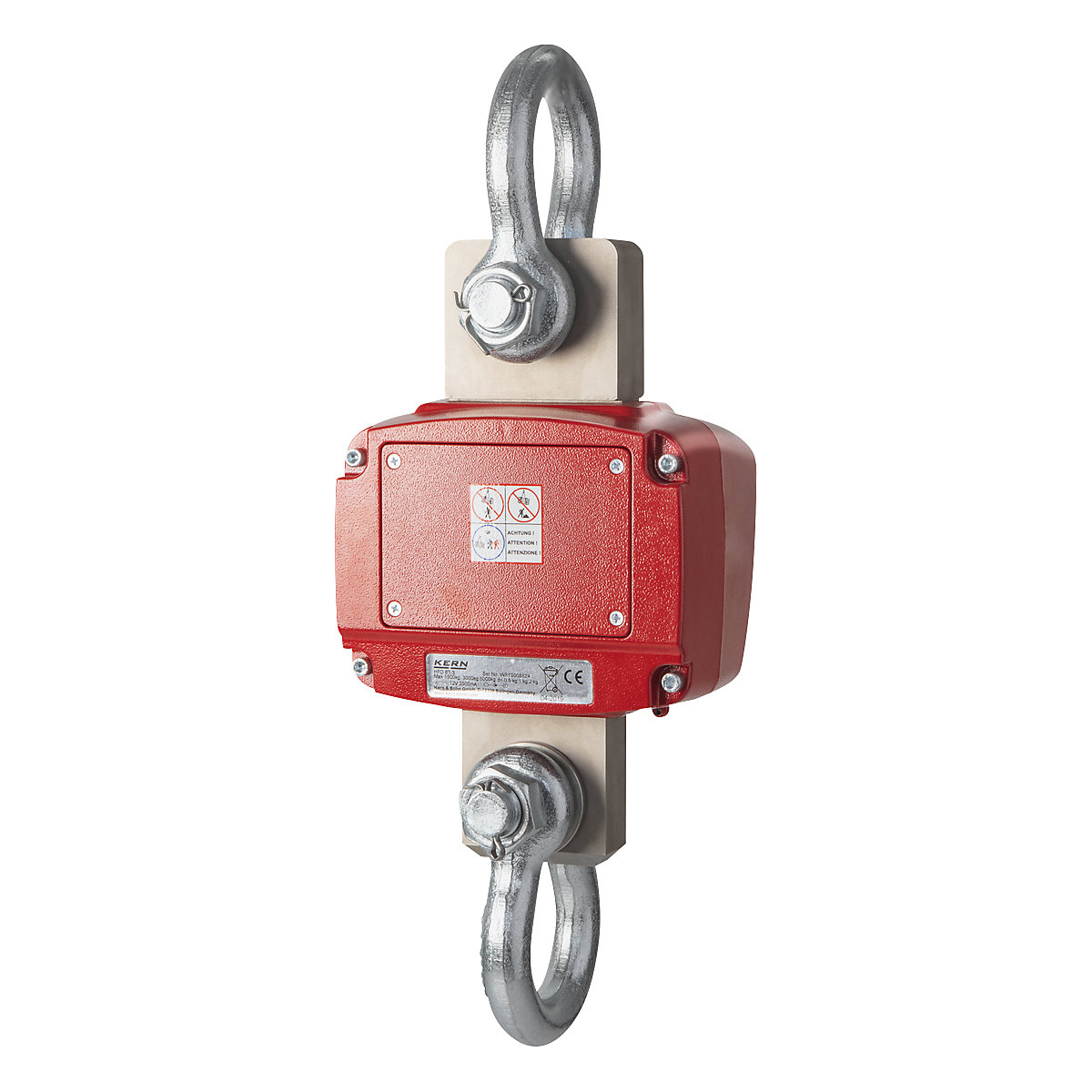

Available in five different versions, the different models of the crane scales come with a weighing range of 600 kg to 12 tonnes. The weight can be read off using a multi-range display in practical increments to make reading easier. The TÜV test mark shows that the scales fulfil the requirements specified in the EN 13155 standard (non-fixed load lifting attachments) and EN 61010-1 (safety requirements for electrical equipment). The shackle is solid and does not turn, which increases its robustness.

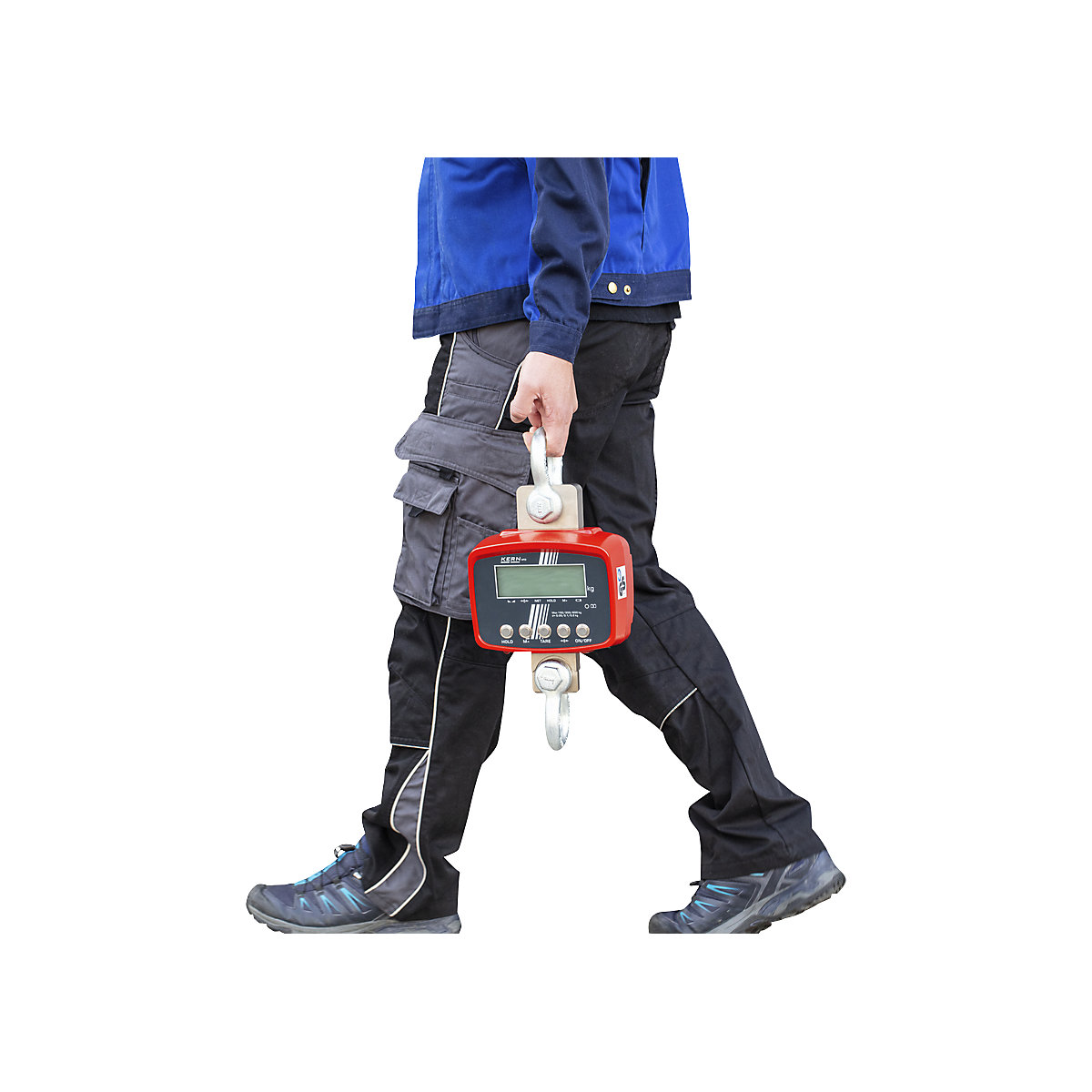

High mobility
Due to rechargeable battery operation, compact design and low inherent weight, the scales offer a high level of mobility in everyday use. They are particularly suitable for flexible use at several locations in production, warehouses and mailing. The wireless remote control makes operation even more convenient. A bright backlit display makes it easy to read the weight value – even in poor lighting conditions. To save the battery, the scales switch off automatically when no weighing jobs are being done. The battery is built in to protect it, and is easy to remove in the event of replacement. The charging time is approx. 12 hours when using a mains adapter. The battery exhibits an operating time of up to 70 hours when no backlighting is used.

Hold function and tare

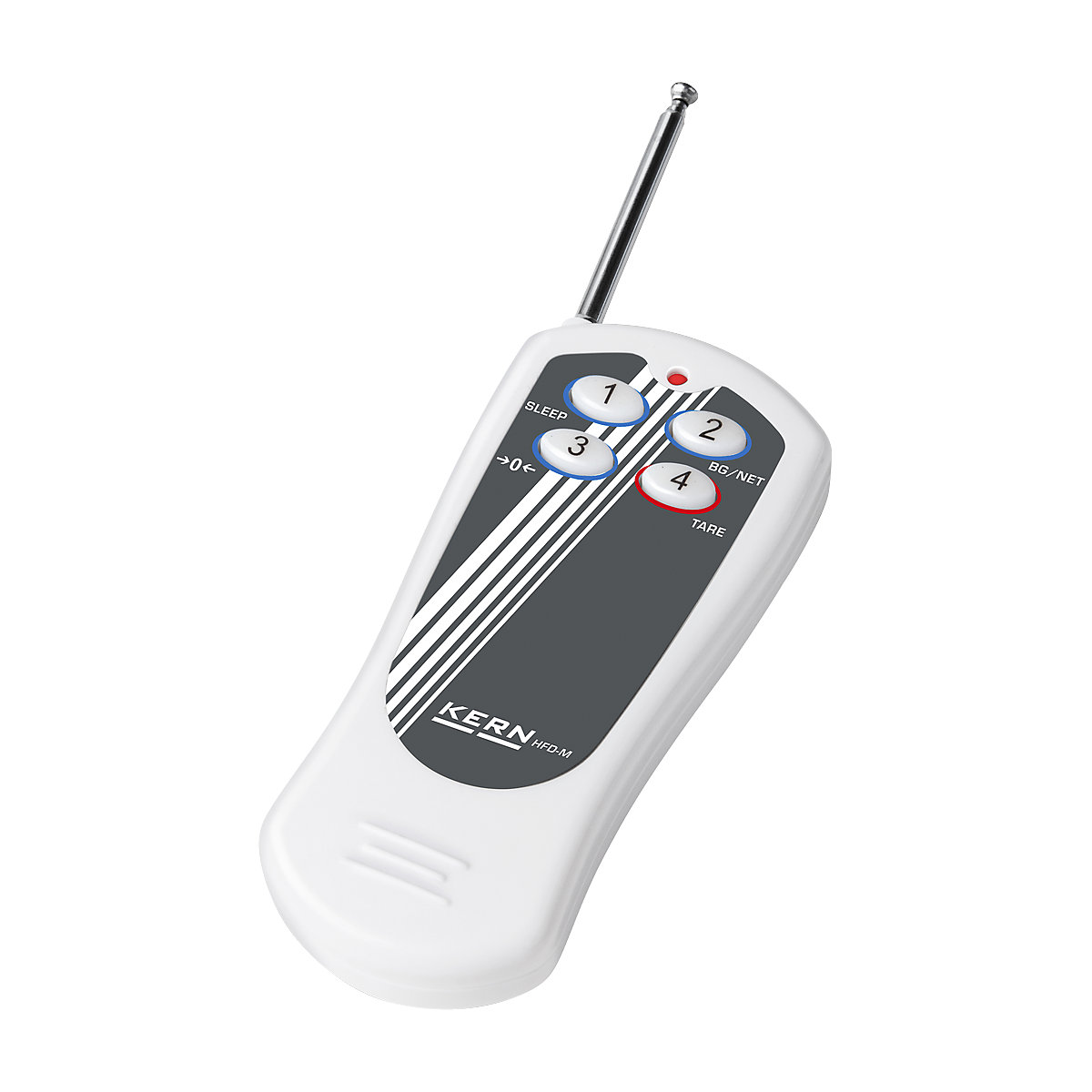

The weight display is frozen when the hold button is pressed when the scales are not being used. The tare function resets the display to 0 while the scales are loaded. Loads that are removed or added are then displayed directly. A radio remote control with battery is included as standard. It has a range of up to 20 m and all functions of the scales can be selected.

Crane scales including mains adapter and radio remote control with battery (1 x 12 V / 23 A)
Technical data
Materialplastic  metal
Height180 mm
Width584 mm
Depth194 mm
Figures height30 mm
Functiondata hold  tare
Power supplysafety power supply unit
Product typecrane scales
Suppliedassembled
Max. weighing range3000 / 6000 / 12000 kg
Scale division1000 / 2000 / 5000 g
Weight22 kg
