Ref.: 588905 10

Base sump tray with PE insert – eurokraft pro with grate, 1000 l, LxWxH 2665 x 1315 x 440 mm

Base sump tray with PE insert – eurokraft pro
Base sump tray with PE insert – eurokraft pro, with grate, 1000 l, LxWxH 2665 x 1315 x 440 mm, orange-0
Base sump tray with PE insert – eurokraft pro (Product illustration 2)-1

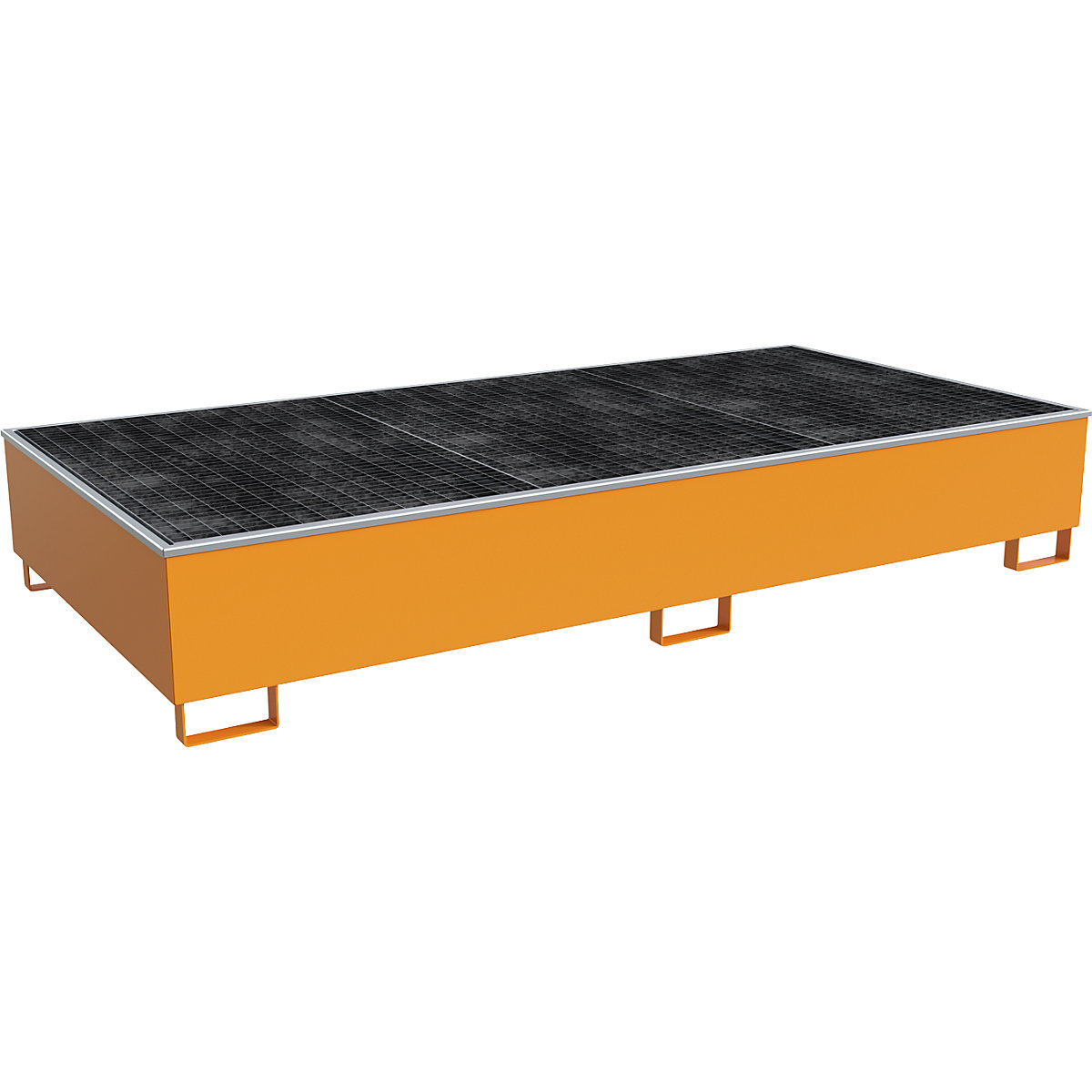

Base sump tray with PE insert – eurokraft pro (Product illustration 3)-2

orange

2.304,00 €
Price / item (Ex. VAT)
Availability: Over 4 weeks
Product description
  • For the storage of aggressive, corrosive, flammable media in containers on pallets – tray grate can be used as a bottom shelf
  • Convert existing shelving systems into regulation compliant hazardous goods storage shelving

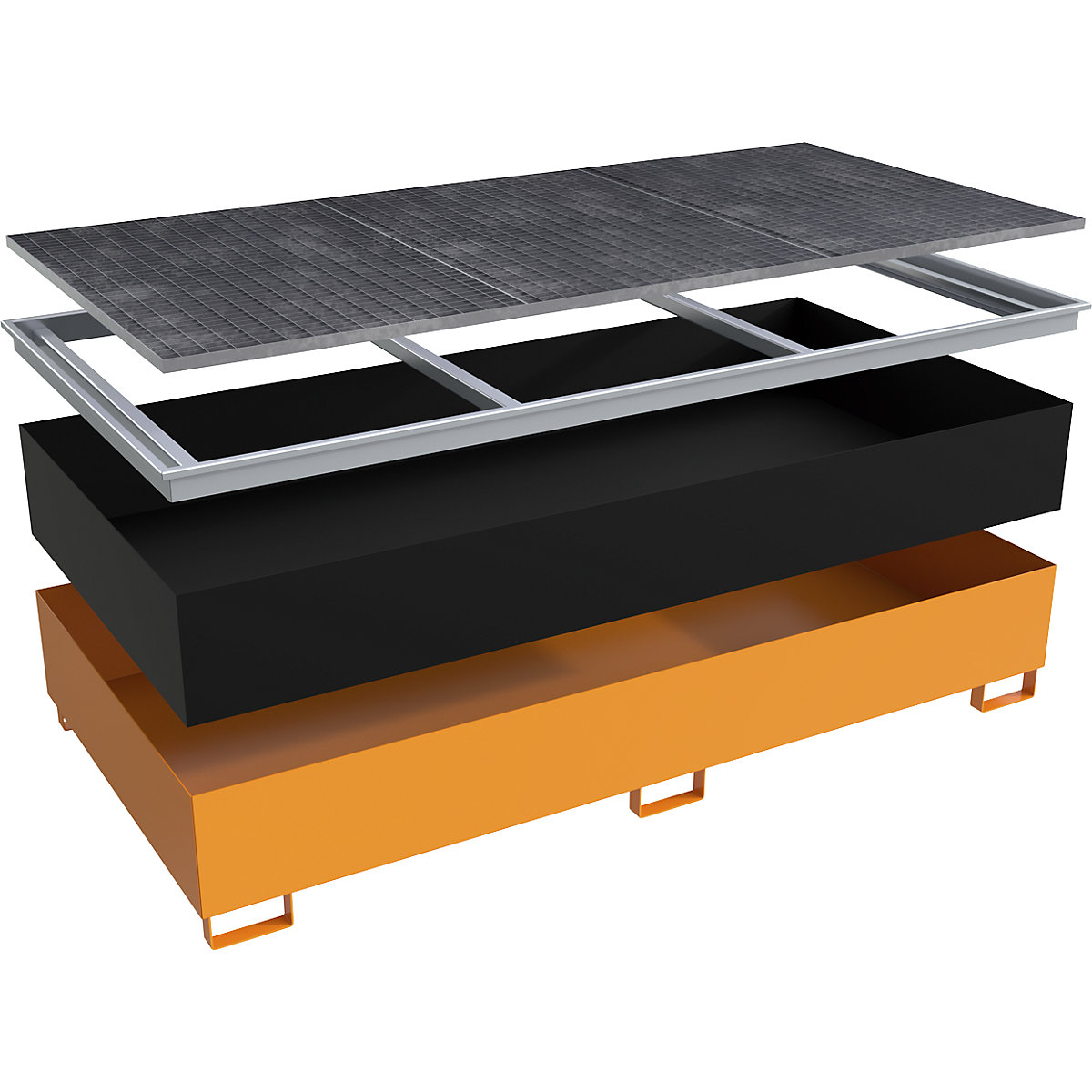

  • Steel trays with PE insert, clamp frame, grate – simply place under shelving systems
  • 100 mm base clearance for easy transport using a forklift truck or pallet truck
  • With certification – manufacturer's declaration of conformity in accordance with StawaR
Base sump tray made of steel with plastic insert for the storage of aggressive, corrosive and flammable media such as acids, alkaline solutions, chemicals etc.

Construction made of 3 mm sheet steel with hardwearing, leakproof welded plastic insert made of robust polyethylene sheet material.
With zinc plated steel clamp frame for fixing the plastic insert in place.

This product combines the advantages of a steel tray (very sturdy and durable) with the high material resistance of polyethylene.

For the economical and legally compliant conversion of shelf unit systems, even ones already installed.

Certified with manufacturer's declaration of conformity in accordance with StawaR.
Approved for flammable liquids in GHS categories 1 – 3.
Approved for water hazardous liquids in GHS categories 1 – 4.
Approved for corrosive liquids in GHS category 1.
Please enquire for individual dimensions and designs!
10 year guarantee
10 year guarantee
Resistant to aggressive, corrosive chemicals
Resistant to aggressive, corrosive chemicals
For water hazardous liquids
For water hazardous liquids
For flammable liquids
For flammable liquids
Technical data
Type of gratewith zinc plated grate
Sump capacity1000 l
Length2665 mm
Width1315 mm
Height440 mm
Materialsheet steel  polyethylene
Design of sump traywith PE insert
Max. load1000 kg/m²
Clearance height100 mm
Test symbolmanufacturers declaration of conformity in accordance with StawaR
Material thickness3 mm
For mediaflammable and corrosive liquids  water hazardous dangerous goods
Hazard classfor flammable liquids in GHS categories 1 – 3, for water hazardous liquids in GHS categories 1 – 4 and for corrosive liquids in GHS category 1
Distributed load1000 kg/m²
Certificationwith
Product typeshelf sump trays
Suppliedassembled
Finishpainted
Colouryellow orange RAL 2000
Weight261 kg
