Ref.: 909582 10

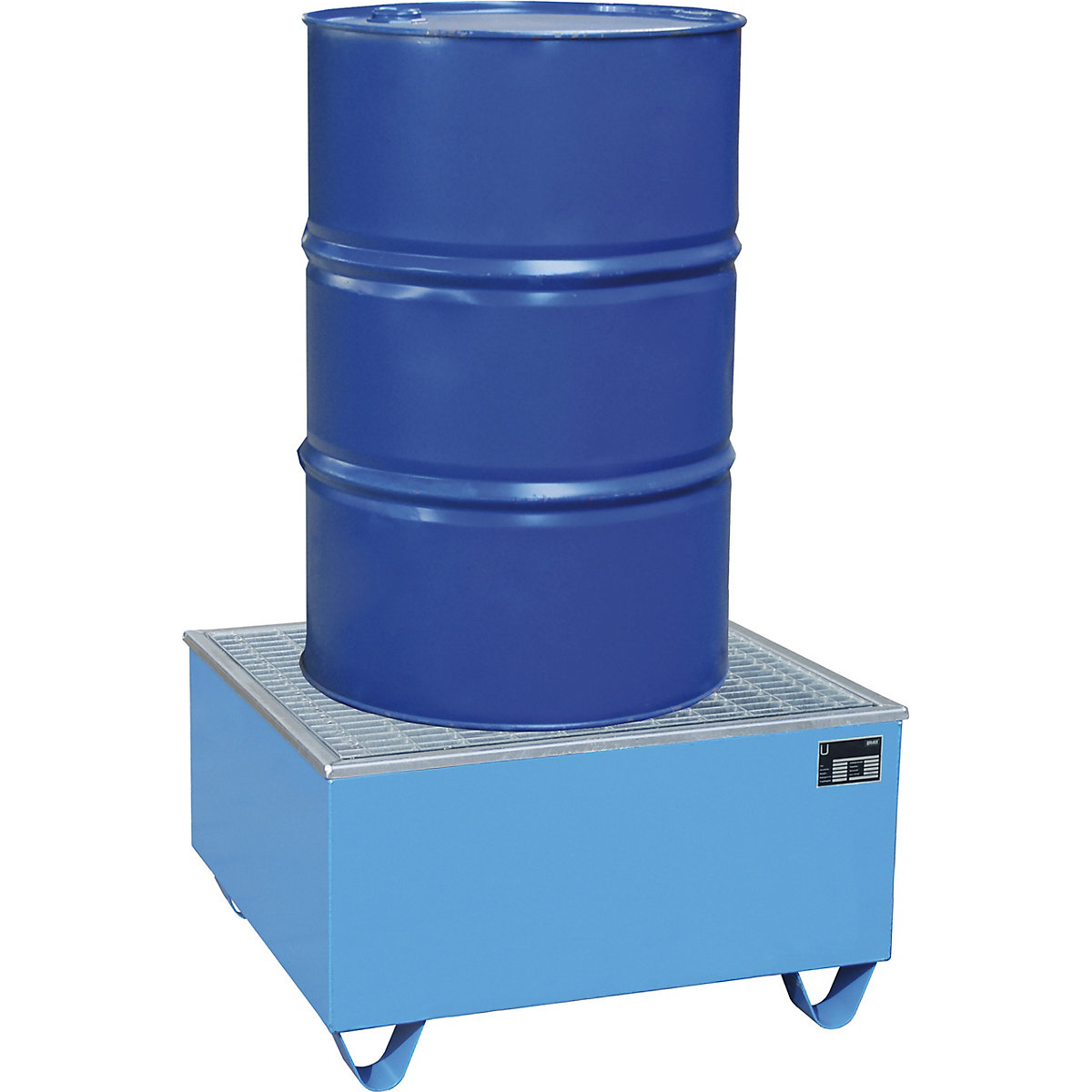

Steel sump tray with PE insert – eurokraft pro for 200 l drums
LxWxH 815 x 815 x 468 mm, painted blue
Drum capacity
Sump capacity [l]
Length [mm]
Width [mm]
Height [mm]
Finish
Ref.: 909582 10
Steel sump tray with PE insert – eurokraft pro for 200 l drums
LxWxH 815 x 815 x 468 mm, painted blue
LxWxH 815 x 815 x 468 mm, painted blue
1.120,00 €
Price / item (Ex. VAT)
Availability: 4 weeks
Good reasons to purchase products from us
- Worldwide delivery
- Perfect service
- Individual offers
- Fast delivery
We will be happy to help you
export@kaiserkraft.com
Product description
- For the storage of aggressive, corrosive, flammable media such as acids, alkaline solutions, chemicals, oils
- Robust steel tray with hardwearing PE insert, clamp frame and grate
- With certification – manufacturer's declaration of conformity in accordance with StawaR
Robust steel tray construction made of 3 mm sheet steel with hardwearing, leakproof welded plastic insert made of robust polyethylene panel material.
With zinc plated steel clamp frame for fixing the plastic insert in place.
This product combines the advantages of a steel tray (very sturdy and durable) with the high material resistance of polyethylene.
Certified with manufacturer's declaration of conformity in accordance with StawaR.
Approved for flammable liquids in GHS categories 1 – 3.
Approved for water hazardous liquids in GHS categories 1 – 4.
Approved for corrosive liquids in GHS category 1.
With zinc plated steel clamp frame for fixing the plastic insert in place.
This product combines the advantages of a steel tray (very sturdy and durable) with the high material resistance of polyethylene.
Certified with manufacturer's declaration of conformity in accordance with StawaR.
Approved for flammable liquids in GHS categories 1 – 3.
Approved for water hazardous liquids in GHS categories 1 – 4.
Approved for corrosive liquids in GHS category 1.
Please enquire for individual dimensions and designs!
10 year guarantee
Resistant to aggressive, corrosive chemicals
For water hazardous liquids
For flammable liquids
Technical data
Type of grate | with zinc plated grate |
---|---|
Material | sheet steel |
Design of sump tray | with PE insert |
Max. load | 1000 kg/m² |
Clearance height | 100 mm |
Test symbol | manufacturers declaration of conformity in accordance with StawaR |
Material thickness | 3 mm |
For media | flammable and corrosive liquids water hazardous dangerous goods |
Hazard class | for flammable liquids in GHS categories 1 – 3, for water hazardous liquids in GHS categories 1 – 4 and for corrosive liquids in GHS category 1 |
Distributed load | 1000 kg/m² |
Certification | with |
Product type | 200 l sump trays |
Supplied | assembled |
Drum capacity | 1 x 200 l |
Sump capacity | 200 l |
Length | 815 mm |
Width | 815 mm |
Height | 468 mm |
Finish | painted |
Colour | light blue RAL 5012 |
Weight | 84 kg |
