Ref.: 487216 10

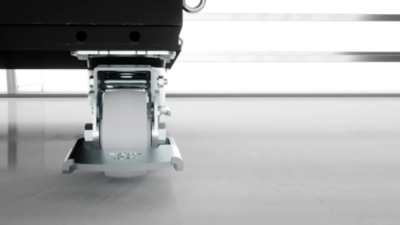

Levelling swivel castor height adjustable locking foot

Levelling swivel castor
Levelling swivel castor, height adjustable locking foot, nylon, max. load 230 kg, Ø x W 80 x 37 mm-0
Levelling swivel castor (Product illustration 2)-1

nylon, max. load 230 kg, Ø x W 80 x 37 mm

223,00 €
Price / item (Ex. VAT)
Availability: 7-10 Working days
Product description
  • Primarily for mobile use
  • Mobility with height adjustment
  • Height adjustable locking foot, fixed wheel
  • Very stable
  • Rotating activation lever
Housing made of electrolytically zinc plated sheet steel, blue passivated, with dual ball bearings in the live ring, with live ring seal. Locking foot made of steel.

Stable footing due to integrated, height adjustable locking foot. The height of the locking foot is adjusted using rotating activation and release lever.
High maximum load
High maximum load
Non-marking
Non-marking
Technical data
Wheel diameter80 mm
Structureswivel castor
Housing materialsteel
Type of mountingwith top plate
Overall height121 mm
Swivel castor offset56 mm
Screw hole diameter9 mm
Swivel castor plate dimensions100 x 85 mm
Screw hole spacing80 x 60 mm
Housing surfacezinc plated
Product typelevelling castors
Suppliedassembled
Wheel materialplastic – nylon
Material of rimnylon
Max. load at 4 km/h230 kg
Wheel width37 mm
Wheel bearingplain bearing
Temperature resistance–25 °C to +80 °C
Shore hardness70 D
Featurelow wear low rolling resistance
Weight1.85 kg
‌
‌
‌
‌
